0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels

Product Categories
Zhuzhou TGC Cemented Carbide Co.,Ltd.
Contact Now

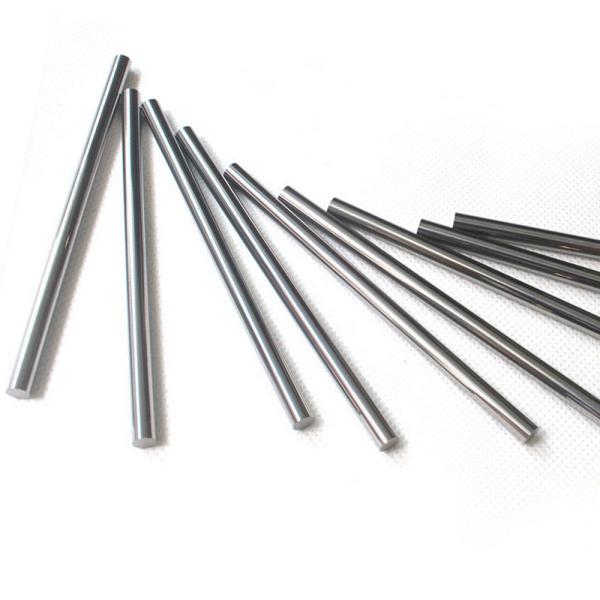

0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels

  • 1
  • 2

Brand Name : OUQI

Model Number : Ground carbide rods

Certification : ISO9001:2008 ISO14001:2004

Place of Origin : China

MOQ : 10pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000kgs per month

Delivery Time : Standard products in one week

Packaging Details : plastic box/box + Cartons

Material : 10% Cobalt

ISO Grade : K30-K40

Diameter : 8mm

Leght : 330mm

Tolerance : h6/h5 or as required

Surface Roughness : Ra 0.2-0.4

Circularity : 0.02-0.05

straightness : 0.02-0.05

Density : 14.5

Hardness HV30 : 1610

T.R.S : 4200

Grain size : 0.6

Contact Now

K30-K40 0.6μm ground carbide rods for Corrosion and heat resistant steels



Specification:

Diameter 8mm

Ground tolerance -0.009mm

Length 330 or cut-to-length



Material datasheet

ISO-Range K30 - K40
Chemical Data
Co (%) 10
WC incl. Doping (%) 90

Physical Data
Density (g/cm3) 14.5
Hardness
HV 30 (N/mm2) 1610
HRA 91.9
Transverse Rupture Strength
(N/mm2) > 4200
KIc* (Shetty) (MNm-3/2) 10.5

Metallographic Data
Porosity
≤10 μm A ≤ 02
10 -25 μm B 00
C 00

Microstructure
Tungsten Carbide α 0.6 μm


Application:

  • Steels
  • Corrosion and heat resistant steels
  • Cast iron



Regular size for ground carbide rods:

0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels



Diameter (mm) Length (mm)   Diameter (mm) Length (mm)
D Tolerance Length Tol.   D Tolerance Length Tol.
1.00 +0/-0.006 330 0/+0.5   10.50 +0/-0.011 330 0/+0.5
1.50 330 0/+0.5   11.00 330 0/+0.5
2.00 330 0/+0.5   11.50 330 0/+0.5
2.50 330 0/+0.5   12.00 330 0/+0.5
3.00 330 0/+0.5   12.50 330 0/+0.5
3.50 330 0/+0.5   13.00 330 0/+0.5
4.00 330 0/+0.5   13.50 330 0/+0.5
4.50 +0/-0.008 330 0/+0.5   14.00 330 0/+0.5
5.00 330 0/+0.5   14.50 330 0/+0.5
5.50 330 0/+0.5   15.00 330 0/+0.5
6.00 330 0/+0.5   15.50 330 0/+0.5
6.50 330 0/+0.5   16.00 330 0/+0.5
7.00 330 0/+0.5   18.00 330 0/+0.5
7.50 330 0/+0.5   20.00 330 0/+0.5
8.00 +0/-0.009 330 0/+0.5   22.00 330 0/+0.5
8.50 330 0/+0.5   24.00 330 0/+0.5
9.00 330 0/+0.5   25.00 +0/-0.013 330 0/+0.5
9.50 330 0/+0.5   28.00 330 0/+0.5
10.00 330 0/+0.5   30.00 330 0/+0.5
          32.00 +0/-0.016 330 0/+0.5



General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter Tolerance μm   Length Tolerance   Straightness Tolerance   Circularity Tolerances
＜3.0 -6/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -8/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -9/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -11/0   ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -13/0   18,1- 30,0 4,0 micron
30.0-50.0 -16/0 30,1- 50,0 5,0 micron



General tolerance for the h5 finished ground solid carbide rods
Diameter Tolerance μm   Length Tolerance   Straightness Tolerance   Circularity Tolerances
＜3.0 -4/0 ＜100.0 +0.5/+1.0 ＜4.0 0.07 <3,0 2,0 micron
3.0-6.0 -5/0 100.0-165.0 +1.0/+2.5 4.5-5.0 0.06 3,0- 6,0 2,5 micron
6.0-1.0 -6/0 165.0-335.0 +1.0/+6.0 5.5-12 0.05 6,1-10,0 3,0 micron
10.0-18.0 -8/0   ＞12.5 0.04 10,1-18,0 3,5 micron
18.0-30.0 -9/0   18,1- 30,0 4,0 micron
30.0-50.0 -11/0 30,1- 50,0 5,0 micron


Our tungsten carbide rods:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
  • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
  • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

Carbide grades

0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels

What we can provide



0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels

0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels

0.6μM Solid Ground Carbide Rods K30 - K40 Blanks For Heat Resistant Steels
