K1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round Bar

Product Categories
Zhuzhou TGC Cemented Carbide Co.,Ltd.
Contact Now

K1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round Bar

  • 1
  • 2

Brand Name : OUQI

Model Number : Unground Carbide Rods

Certification : ISO 9001: 2015

Place of Origin : China

MOQ : 10pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000kgs per month

Delivery Time : Standard products in one week

Packaging Details : plastic box/box + Cartons

Material : Tungseten carbide

ISO Grade : K40/K50

Diameter : D19.3mm

Leght : 330mm

Tolerance : Length +5mm, OD +0.5mm

Surface Roughness : Ra 6.3

Circularity : 0.2-0.5

straightness : 0.2-0.5

Cobalt : 15%

Hardness : HRA 89.6

T.R.S : 4500

Grain size : 0.8

Contact Now

k1C 13.8 K40 unground carbide rods with sub-fine grain size for punching mold components



ISO Grain size Cobalt Density Hardness T.R.S k1C Applications
Code μm % g/cm3 HRA N/mm2 Mpa.m1/2
K40-K50 0.8 15 13.98 89.6 4500 13.8 Sub-fine grain size, with good wear resistance and toughness, suitable for making punching of mold, anti-vibration boring bar, and machining low-hardness material with deep cutting tools.



Specification:

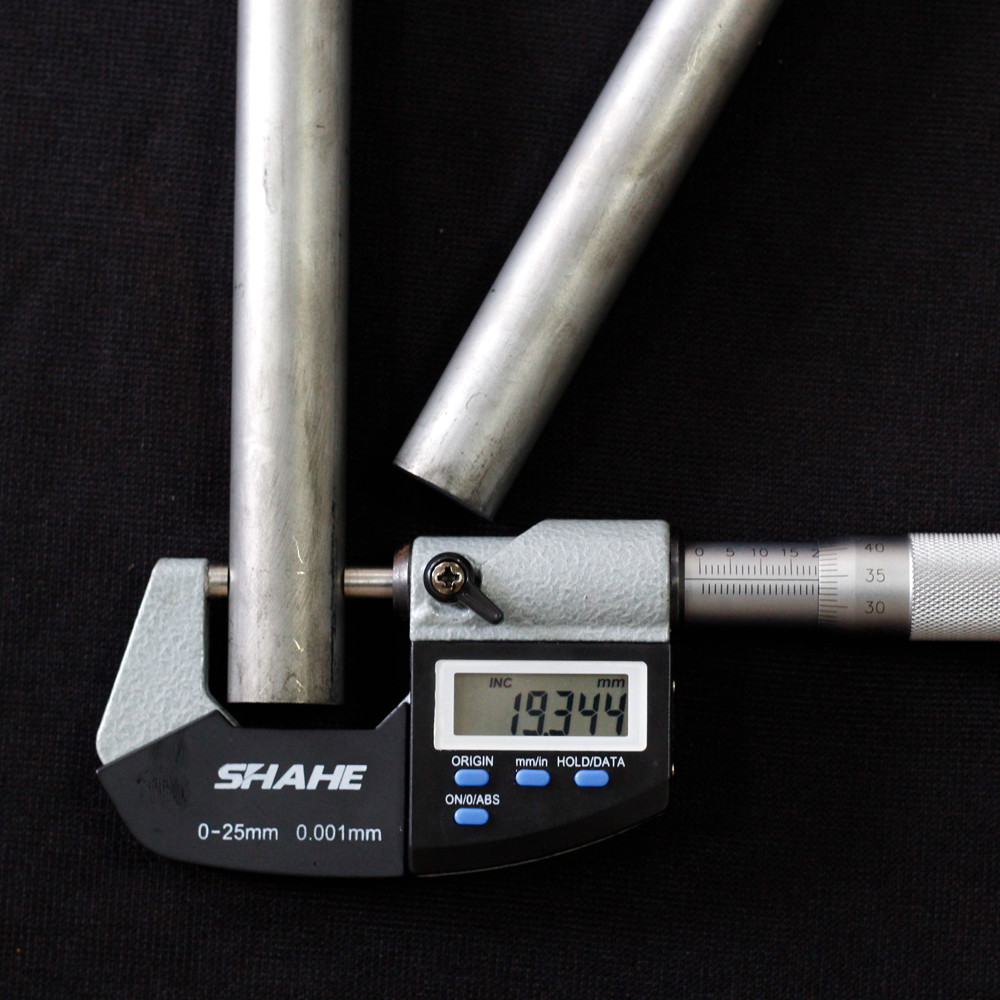

Unground Diameter: 19.3mm +0.5

Length 330mm +5mm or as required

ISO grade K40/K50

Grain size: 0.8μm

Density: 13.98



Applications:

Sub-fine grain size, with good wear resistance and toughness, suitable for making punching of mold, anti-vibration boring bar, and machining low-hardness material with deep cutting tools



K1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round Bar



General tolerance for the raw sintered solid carbide rods
Diameter Tolerance   Length Tolerance   Straightness Tolerance
0,5- 3,5 +0,25/+0,35 ＜100.0 +0.5/+1.0 0,6-4 0,10
4,0- 6,0 +0,25/+0,40 100.0-165.0 +1.0/+2.5 4,5-8 0,12
6,5-12,0 +0,30/+0,45 165.0-335.0 +1.0/+6.0 8,5-12,0 0,15
12,5-16,0 +0,35/+0,50   12,5 - 20 0,20
16,5- 22,0 +0,40/+0,55 ≥20,5 0,24
22,5-45,0 +0,45/+0,60



Description:

  • 100% virgin material, no recycled material
  • Spray drying tower and HIP sintering furnace
  • Constant excellent quality
  • Large stock for all sizes
  • 100% inspected before delivery
  • Fast delivery time, regular products can be shipped in 3 days.
  • Excellent grinding quality, Straightless could be 0.05 or 0.02.

K1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round Bar

Diameter mm Length mm   Diameter mm Length mm
D Tolerance Length Tol.   D Tolerance Length Tol.
1.16 -0/+0.15 330 0/+0.5   16.20 -0/+0.45 330 0/+0.5
1.65 330 0/+0.5   17.20 330 0/+0.5
1.80 330 0/+0.5   18.20 330 0/+0.5
2.20 -0/+0.20 330 0/+0.5   19.20 330 0/+0.5
2.70 330 0/+0.5   20.20 330 0/+0.5
3.25 330 0/+0.5   21.20 -0/+0.55 330 0/+0.5
3.70 330 0/+0.5   22.20 330 0/+0.5
4.20 330 0/+0.5   23.20 330 0/+0.5
4.70 330 0/+0.5   24.2 330 0/+0.5
5.20 -0/+0.25 330 0/+0.5   25.2 -0/+0.65 330 0/+0.5
5.70 330 0/+0.5   26.2 330 0/+0.5
6.20 330 0/+0.5   28.2 330 0/+0.5
6.70 330 0/+0.5   30.2 330 0/+0.5
7.20 -0/+0.35 330 0/+0.5   32.2 330 0/+0.5
7.70 330 0/+0.5
8.20 330 0/+0.5
8.70 330 0/+0.5
9.20 330 0/+0.5
9.70 330 0/+0.5
10.20 330 0/+0.5
10.70 330 0/+0.5
11.20 330 0/+0.5
11.70 330 0/+0.5
12.20 330 0/+0.5
12.70 330 0/+0.5
13.20 330 0/+0.5
13.70 330 0/+0.5
14.20 330 0/+0.5
14.70 330 0/+0.5
15.20 330 0/+0.5
15.70 330 0/+0.5



Grades for tungsten carbide rods:

K1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round Bar





K1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round BarK1C 13.8 Unground Carbide Rods K40 Sub Fine Grain Size Carbide Round Bar
