HRA 91.9 H6 Ground Carbide Rods YL10.2 K30 - K40 For Spray Nozzles

Name: HRA 919 H6 Ground Carbide Rods YL102 K30 K40 For Spray Nozzles
Brand: OUQI
Price: 1 USD

Buy cheap HRA 91.9 H6 Ground Carbide Rods YL10.2 K30 - K40 For Spray Nozzles product

Brand Name : OUQI

Model Number : Cut-to-length carbide rods

Certification : ISO9001:2008 ISO14001:2004

Place of Origin : China

MOQ : 10pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000kgs per month

Delivery Time : Standard products in one week

Packaging Details : plastic box/box + Cartons

Material : YL10.2

ISO Grade : K30-K40

Diameter : 3.0mm

Leght : 40mm

Tolerance : h6

Surface Roughness : Ra 0.2

Circularity : 0.1

straightness : 0.1

Density : 14.50

Hardness HV30 : 1850

T.R.S : 3800-4200

Grain size : Fine

Contact Now

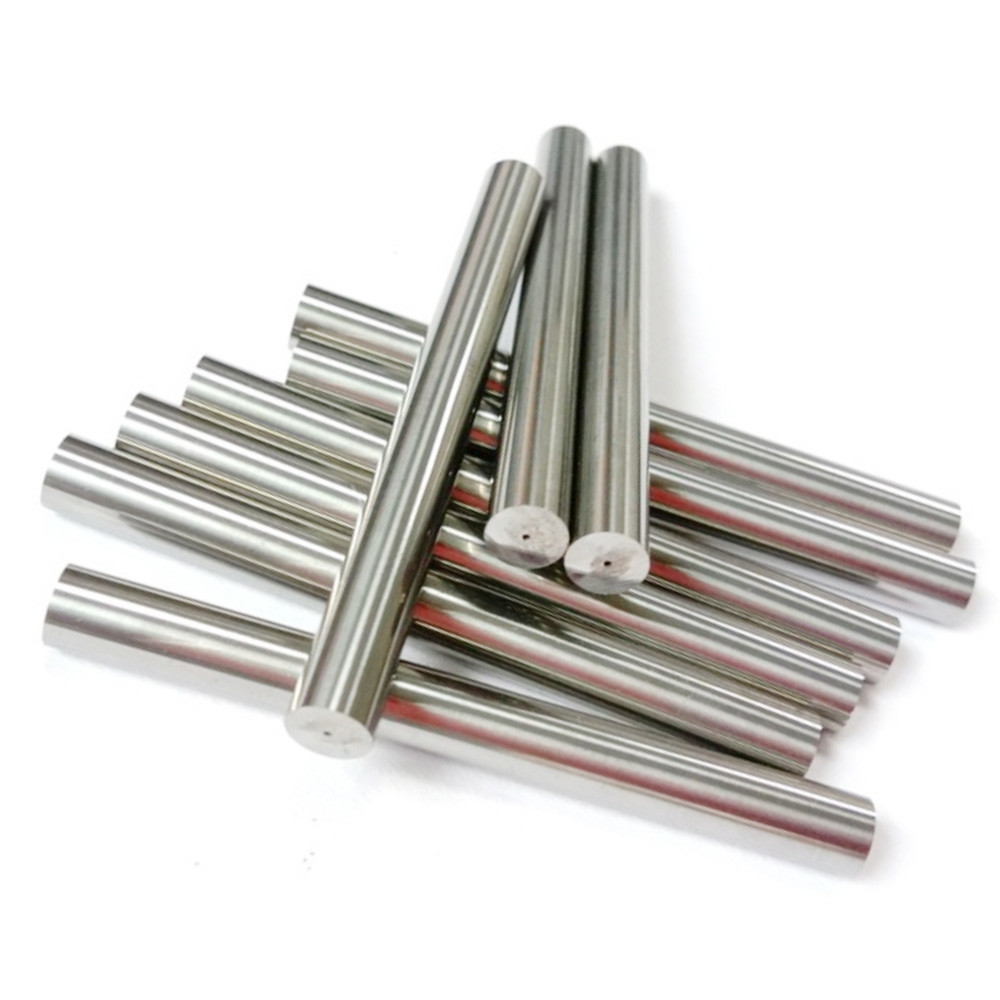

Ground carbide rods in YL10.2 for making special spray nozzles

Outer Diameter	3.0mm
Inner diameter	0.8mm
Hardness	HRA 91.9
T.R.S	3800
Density	14.45
Grain size	0.7μm

Application: With a small hole for making special spray nozzles, such as water jet cutting nozzles, spray nozzles. High hardness with long service life. The material could be 99.7% WC or without cobalt.

HRA 91.9 H6 Ground Carbide Rods YL10.2 K30 - K40 For Spray Nozzles

Regular size for small drills:

HRA 91.9 H6 Ground Carbide Rods YL10.2 K30 - K40 For Spray Nozzles

Diameter mm		Length
D	Tolerance	L	Tol.
3.25	0/+0.05	38.7	± 0.20
3.25	0/+0.05	38.5	± 0.20
3.50	0/+0.05	38.5	± 0.20
4.00	0/+0.05	38.5	± 0.20
4.50	0/+0.05	38.5	± 0.20
5.00	0/+0.05	38.5	± 0.20
5.50	0/+0.05	38.5	± 0.20
6.00	0/+0.05	38.5	± 0.20
6.50	0/+0.05	38.5	± 0.20
3.50	+0.2/+0.5	12.8	± 0.10
4.00	+0.2/+0.5	12.8	± 0.10
4.50	+0.2/+0.5	12.8	± 0.10
5.00	+0.2/+0.5	12.8	± 0.10
5.50	+0.2/+0.5	12.8	± 0.10
6.00	+0.2/+0.5	12.8	± 0.10
6.50	+0.2/+0.5	12.8	± 0.10
6.85	+0.2/+0.5	12.8	± 0.10

Description:

100% virgin material, no recycled material
Spray drying tower and HIP sintering furnace
Constant excellent quality
Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
Excellent grinding quality, Straightless could be 0.05 or 0.02.

Carbide grades

ISO-Range	Co (%)	WC incl. Doping (%)	Density (g/cm3)	HV 30 (N/mm2)	HRA	T.R.S	KIc* (Shetty) (MNm-3/2)	Application
K10	6	94	14.8	1900	93.8	> 3900	9	Unalloyed and hardened steels Non-ferrous metals Aluminium alloys Cast iron Composites (CFRP and GFRP)
K10 - K20	8	92	14.6	1710	92.5	> 4000	9.5	Unalloyed and hardened steels Non-ferrous metals Non-ferrous metals Plastics
K20 - K30	9	91	14.3	1680	92.2	> 3900	9	High hardness materials Aluminium alloys Cast iron Graphite
K30 - K40	10	90	14.5	1610	91.9	> 4200	10.5	Steels Corrosion and heat resistant steels Stainless steels Non ferrous metals Nickel based alloys Aluminium alloys
K40 - K50	12	88	14.1	1680	92.3	> 4400	10	Steels Corrosion and heat resistant steels Stainless steels Non ferrous metals Titanium alloys
K40 - K50	13	87	13.9	1700	92.4	> 4000	9.5	Corrosion and heat resistant steels Non ferrous metals Nickel based alloys Titanium alloys

General Tolerance for ground carbide rods

General tolerance for the h6 finished ground solid carbide rods
Diameter	Tolerance μm	Length	Tolerance	Straightness	Tolerance	Circularity	Tolerances
＜3.0	-6/0	＜100.0	+0.5/+1.0	＜4.0	0.07	<3,0	2,0 micron
3.0-6.0	-8/0	100.0-165.0	+1.0/+2.5	4.5-5.0	0.06	3,0- 6,0	2,5 micron
6.0-1.0	-9/0	165.0-335.0	+1.0/+6.0	5.5-12	0.05	6,1-10,0	3,0 micron
10.0-18.0	-11/0			＞12.5	0.04	10,1-18,0	3,5 micron
18.0-30.0	-13/0					18,1- 30,0	4,0 micron
30.0-50.0	-16/0					30,1- 50,0	5,0 micron

General tolerance for the h5 finished ground solid carbide rods
Diameter	Tolerance μm	Length	Tolerance	Straightness	Tolerance	Circularity	Tolerances
＜3.0	-4/0	＜100.0	+0.5/+1.0	＜4.0	0.07	<3,0	2,0 micron
3.0-6.0	-5/0	100.0-165.0	+1.0/+2.5	4.5-5.0	0.06	3,0- 6,0	2,5 micron
6.0-1.0	-6/0	165.0-335.0	+1.0/+6.0	5.5-12	0.05	6,1-10,0	3,0 micron
10.0-18.0	-8/0			＞12.5	0.04	10,1-18,0	3,5 micron
18.0-30.0	-9/0					18,1- 30,0	4,0 micron
30.0-50.0	-11/0					30,1- 50,0	5,0 micron

What we can provide

HRA 91.9 H6 Ground Carbide Rods YL10.2 K30 - K40 For Spray Nozzles
