Solid Cemented Tungsten Carbide Rod 3% - 12% Cobalt Length 330mm Dia 1.6 - 32mm

Zhuzhou TGC Cemented Carbide Co.,Ltd.
Contact Now

Solid Cemented Tungsten Carbide Rod 3% - 12% Cobalt Length 330mm Dia 1.6 - 32mm

Brand Name : OUQI

Model Number : Cemented Carbide Rods

Certification : ISO 9001: 2015

Place of Origin : China

MOQ : 10pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000kgs per month

Delivery Time : Standard products in one week

Packaging Details : plastic box/box + Cartons

Material : 3% to 12% Cobalt

ISO Grade : K10/K20/K30K40

Hardness : HRA 91-94

T.R.S : 3200-4400

Density : 13.98-14.45

Grain size : Nano/ultra-fine/sub-fine/fine

Diameter : 1.6mm-32mm

Leght : 330mm or as per required

Tolerance : h4/h5/h6

Surface Roughness : Ra0.2 or as per required

Circularity : 0.05

straightness : 0.05

Contact Now

Cemented carbide rods for end mills/drills blanks with ultra-fine grain size



Specification: Ø1.6mm to Ø32mm, length as required.

Type: Solid carbide rods/ Ground carbide rods. Straight holes/Helical holes rods, cut to length with chamfer as endmills blank..

Application: Endmills and drills blank for cutting metal, wooden, plastic, and punching and dies.



YL10.2 Grade:

Cobalt: 10%

Hardness: HRA 91.9

TRS 4200

Density: 14.45

Grain size: sub-fine grain size

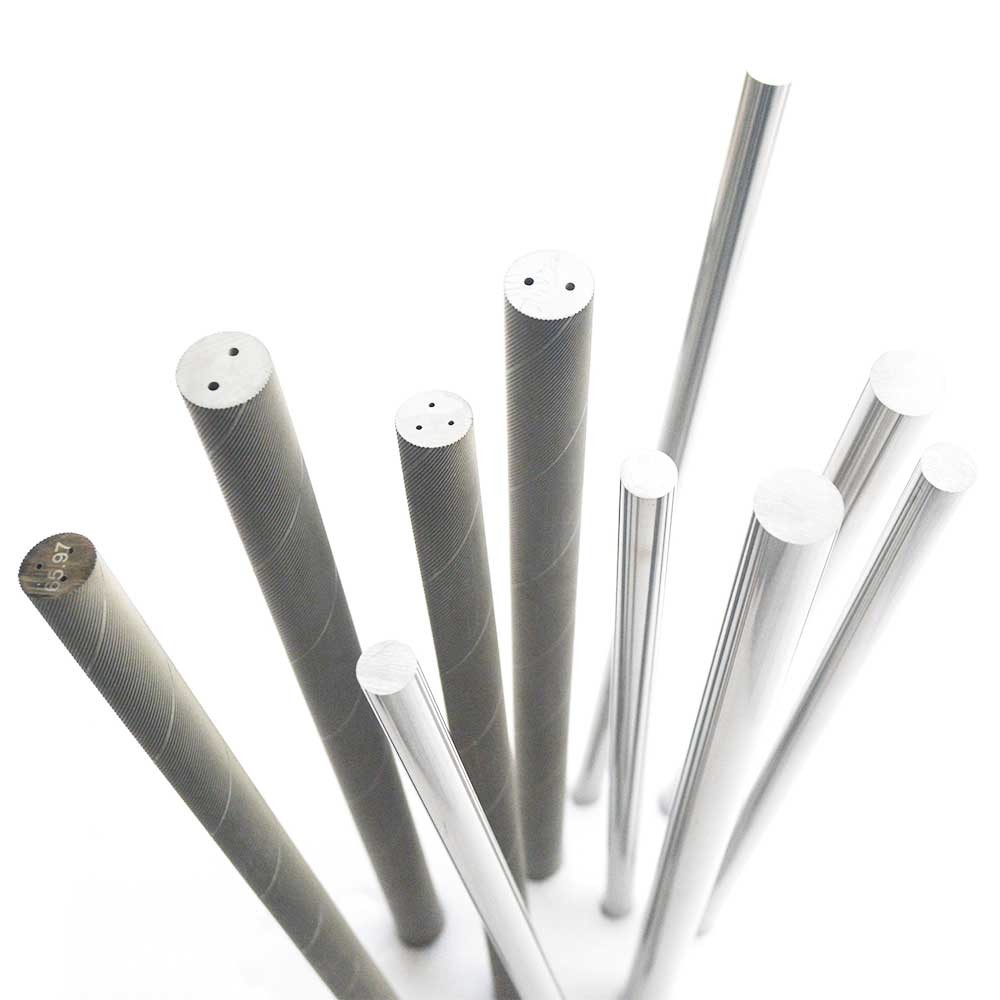

Solid Cemented Tungsten Carbide Rod 3% - 12% Cobalt Length 330mm Dia 1.6 - 32mm


Our advantage:

  • For raw material:
  • Constantly excellent WC powder produced by our own factory.
  • Spray drying tower and HIP sintering furnace
  • Cryogenic treatment to remove the internal stress
  • For grinding:
  • General h6 rods and h5 or h4 as required
  • Straightness 0.01-0.05
  • Circularity 0.01-0.05
  • General Roughness Ra 0.4, and Ra 0.2 or Ra 0.05 as required.



What we can provide:

  • Unground/Finished ground Solid carbide rods
  • Cemented carbide rods with straight coolant holes
  • Cemented carbide rods with helical coolant holes
  • Cut-to-length rods
  • End mills blank with 3/4/5 holes

Grades for tungsten carbide rods:



Grade ISO Code Grain size
μm
Cobalt % Density
g/cm
3
Hardness T.R.S
  HV30 HRA N/mm2 KPSI
YF06 K05K10 0.5 6.0 14.90 1850 93.5 3800 553.9
YL10A K10K20 0.8 8.0 14.65 1780 92.8 4200 609.5
YL10.2 K20K30 0.8 10.0 14.42 1600 91.5 4000 580
XF30 K30K40 0.6 12.0 14.10 1700 92.5 4000 580





Recommended Application

Grade Application
YF06 Suitable for machining composite materials, such as aluminummagnesium alloys, plastics, reinforced plastics, carbon, fiber, ironbased alloys, etc. It is recommended for making big PCB drills of ф3.26.3mm, micro drills of ф0.83.2mm, micro-milling tools and reamers, etc.
YL10A It is suitable for machining cast iron, aluminum alloys, etc. also for machining common steels.
It is recommended for the drilling of cast iron and aluminum alloys.
YL10.2 It is suitable for machining common steel, cast iron, stainless steel, heatresistant steel, nickel-based alloys, titanium alloys, etc. It is recommended for making conventional tools, such as twist drills, end drills, screw taps, etc.
XF30 It is suitable for machining titanium alloy, heatresistant alloys, stainless steel, hardened steel, grey cast iron, glassfiber Reinforced plastics, composite materials, etc. It is recommended to make drills and milling tools, etc.

Solid Cemented Tungsten Carbide Rod 3% - 12% Cobalt Length 330mm Dia 1.6 - 32mm

Solid Cemented Tungsten Carbide Rod 3% - 12% Cobalt Length 330mm Dia 1.6 - 32mmSolid Cemented Tungsten Carbide Rod 3% - 12% Cobalt Length 330mm Dia 1.6 - 32mm
