Flat Top YG20 Tungsten Carbide Studs 20% Cobalt Bits For Crushers

Brand Name : TGC

Model Number : Cemented Carbide Studs

Certification : ISO 9001: 2015

Place of Origin : China

MOQ : 10pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000kgs per month

Delivery Time : Standard products in one week

Packaging Details : plastic box/box + Cartons

ISO Grade : G30-G40

Cobalt : YG20

Hardness : HRA 84.5

T.R.S : 2200-3000

Density : 13.45-13.65

Application : High-Pressure Grinding roll

Diameter : 20mm

Height : 40mm

Contact Now

H6 Finished Ground Tungsten Carbide Studs For Road Mills G30 Cemented Studs

Product details:

Material:YG20

Density: 13.45-13.65

Hardness HRA 85

Flat Top YG20 Tungsten Carbide Studs 20% Cobalt Bits For Crushers

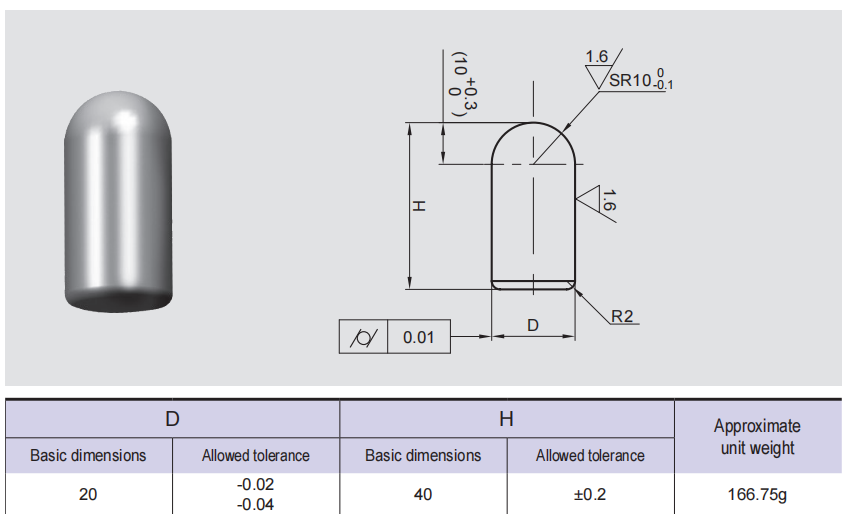

Regular sizes for tungsten carbide stud:

Diameter	Height	Dome	Chamfer E×R
20	40	SR10	2×R5.0
20	30	SR10	2×R5.0
20	35	SR10	2×R5.0
16	55	SR8	R2.0
16	50	SR8	R2.0
16	45	SR8	2×R5.0
16	40	SR8	2×R5.0
16	40	SR8	1×R2.0
16	40	SR8	1×45°
16	35	SR8	R2.0
16	20.5	SR8	R2.0
10	22	SR5	R1.0
10	22	SR5	R1.5
10	20	SR5	R1.5
8	20	SR4	R1.0

1. Various sizes for grinding roller carbide pin have been on to the High pressing

2. Grinding roller, its attachment on the high pressing

3. It can help the surface to use more extended time. This is the abrasive wear-resistant stud for the grinding roller.

HPGR or high-pressure grinding rolls have made extensive progress in non-ferrous metal mining. The technology is now widely seen as an alternative to primary milling, with a number of large units coming into use in recent years. Following these developments, HPGR-based circuit configurations are often the base case for certain ore types, such as very hard abrasive ores.

Flat Top YG20 Tungsten Carbide Studs 20% Cobalt Bits For Crushers
