Machining Bronze Solid Carbide Burrs BSH-2 K10 3/4" Length Fram type

Zhuzhou TGC Cemented Carbide Co.,Ltd.
Contact Now

Machining Bronze Solid Carbide Burrs BSH-2 K10 3/4" Length Fram type

  • 1
  • 2

Brand Name : TGC

Model Number : Carbide burrs blank

Certification : ISO9001:2008 ISO14001:2004

Place of Origin : China

MOQ : 10pc

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000kgs per month

Delivery Time : Standard products in one week

Packaging Details : plastic box/box + Cartons

ISO Grade : K10

TYPE : BSH-2

OD : 5/16"

Length : 3/4"

Application : bronze

Hardness HRA : 91.2

Density : 14.8g/cm3

T.R.S : 1900

Contact Now

BSH-2 Tungsten carbide burrs blank Fram type for machining Bronze

Dimension:
Diameter: 5/16"
Length: 3/4"
Carbide burrs type: BSH-2 Fram type

T.R.S 1900

Hardness HV30 1600



Application: Bronze or other metals. Tungsten carbide burrs are widely used for the general machining, such as removing the burrs, rough grinding metals.






Regular sizes for BSH carbide burrs

Machining Bronze Solid Carbide Burrs BSH-2 K10 3/4" Length Fram type

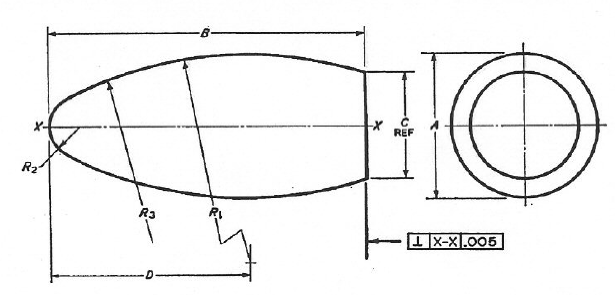

BL ANK DESIGNATION A B C D R1 R2 R3
NOMINAL ACTUAL NOMINAL ACTUAL
BSH2 5/16 0.327±0.005 3/4 0.750±0.010 0.257 0.489±0.015 1.068±0.010 0.068±0.005
BSH5 1/2 0.515±0.005 1-1/4 1.250±0.015 0.431 0.854±0.015 2.005±0.018 0.099±0.005
BSH6 5/8 0.640±0.005 1-7/16 1.438±0.015 0.495 0.880±0.015 2.255±0.020 0.099±0.005 0.755±0.008






General Carbide grades

Cobalt 6%
Hardness 90-91 HRA
Density 14.85-14.95 g/cm3
Grain size 1.2-3.0μm

Tungsten carbide burrs can be used with both electrically-powered and pneumatically-powered hand-held tools to cut the most diverse types of material, such as aluminum, brass, titanium alloys, cast iron, copper, zinc alloys, bronze, nickel, various plastics, alloy steels, etc. They can be used on a wide range of pneumatic, electric and flexible drive tools.

Description of our carbide burrs

  • Effective freehand stock removal
  • Weld preparation and removal (no contamination)
  • Dressing and fettling
  • Long lifetime
  • High safety during working

Machining Bronze Solid Carbide Burrs BSH-2 K10 3/4" Length Fram type


What we can provide


Machining Bronze Solid Carbide Burrs BSH-2 K10 3/4" Length Fram type

Machining Bronze Solid Carbide Burrs BSH-2 K10 3/4" Length Fram type
